一般にソースコード部品というと ライブラリなど粒度の大きい部品を指すが, ここでは C++ などの オブジェクト指向プログラミング言語で書かれたプログラムから 抽出したクラス情報や構成情報のことをいうこととする. すなわち,クラスを単位とした小さい粒度の部品であり, オブジェクト指向ソフトウェア部品の中でも もっとも基本となるものである. なお,本研究では部品の単位はクラスとし, 基本的にオブジェクト単位では扱わない.
ソースコードをクラス単位で部品することにより, 粒度の大きなライブラリ部品(フレームワークなど) やアプリケーション内でのクラスの役割の理解支援を目指す, このため,他のクラス部品やライブラリ部品, 抽象部品との連係を積極的に支援する.
以下では,次の項目でソースコード部品の自動生成機構と Makefile の生成支援機構について説明する.
既存のソースコードから クラス情報やクラス間の関係情報などを抽出する機能を提供することが 望ましい.
クラスを基盤とする言語に於いて, 抽出の単位はクラスでありその関係やインターフェースの アクセス権などが抽出されるべき情報となる. 具体的には次のようになる.
多様な形態の部品との連結を考えるため, ハイパーテキストの形態で保存を行う. ノードは上述の情報をクラス単位で含み, 依存関係に従って相互に連結されていなければならない. アクセス権に従った インターフェースの見せ方の違いを表現する必要がある. ユーザが閲覧などに利用するための 出力形態は HTML で 公開インターフェースと 非公開インターフェースの2つの見え方を提供する. 公開インターフェースには一般に public のような形式で指定されたものを 非公開インターフェースにはそれ以外の例えば protected や private と指定されたものをいう.
実装は,C++ で行なった.
Extracting type/class information is further divided into two processes: partitioning information of a class into nodes and grasping relationship among nodes. C++ is not a pure object-oriented language, and contains various features not for object-oriented programming in order to keep compatibility with C. Here we deal with information concerning classes only, and ignore such as global functions or data outside of classes.
The following three kinds of information are extracted for partitioning a class into nodes:
Typedef and enum declarations are extracted to avoid name conflicts among types, because a class is a kind of type in C++. In the current implementation, signature and name space declarations are ignored.
The topmost part of C++ grammar description in YACC to analyze and extract these information is as follows:
program: /* empty */ extdefs extdefs: extdefs extdef extdef: fndef datadef template_def ......
This means that a program is a series of definitions, and a definition is either a function definition, a data definition, template definition, or else.
A type declaration is in a typed declaration specifier which is a part of a data definition, and a class declaration is in a struct declaration in a type declaration. The following information of a class is extracted out of these:
(Member functions, member variables and access specifiers (private, protected, public)),
(Inheritance, whole-parts and reference relationships).
A grammar description concerning this is as follows:
structspec: ...... class_head { opt.component_decl_list } ...... class_head: ...... aggr identifier aggr identifier : base_class_list ...... aggr: class struct union base_class_list: base_class base_class_list , base_class base_class: typename access_list typename access_list: ...... visspec another_specs ...... opt.component_decl_list: /* empty */ component_decl_list opt.component_decl_list visspec : component_decl_list opt.component_decl_list visspec : visspec: private protected publicA class name (
identifier
)
and its super class name (
base_class_list
), as well as super class access authorities
are in the first part, class_head
of the class declaration.
Interface declarations, functions and variables, are in
component_decl_list
, and references to other types are in
function and variable declarations. Variables can be either of
an aggregate relation or a reference relation, however they are
not distinguished.
HTML files are created based on the extracted information. Only
public super classes and members are stored in a public
interface node file, and protected and private super classes and
members are stored in an implementation node file.

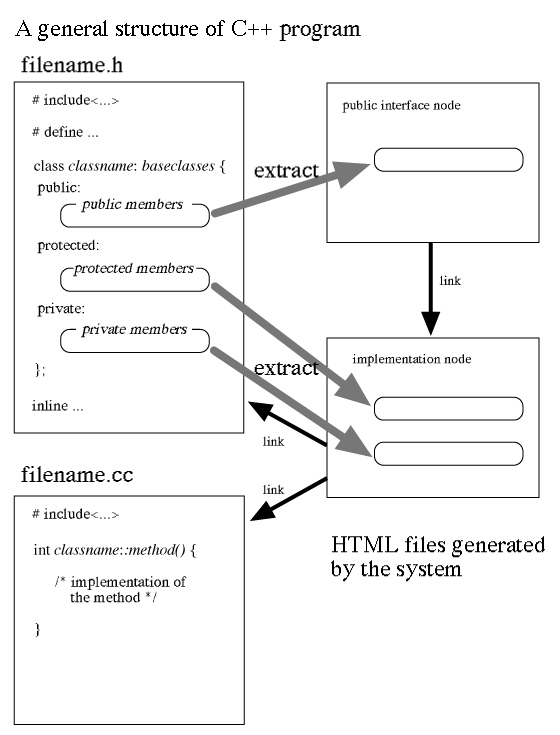

Correspondence between a source code and nodes reflecting the
code is shown in Figure fig:C++vsNodes.
The HTML files contain links corresponding to dependencies of
the class in the form of anchor tags using Common Gateway
Interface (CGI). The form is not URL itself in order to make
location management easy when the node files are relocated. CGI is
an interface mechanism to call an external procedure from HTML
files. A CGI procedure and an argument class ID are placed at
the entry of a link, and the procedure resolves location of the
class by looking up the cmpd table.
The system identifies classes necessary to compile by tracing links. It starts tracing from {\tt Main()} when compiling a whole application, and from a class when compiling this only.
Machine codes, headers and supplementary information of the identified classes are collected from node files. If a class has not be compiled yet and does not have a machine code, its source code is fetched and compiled on the collector site.
This procedure is repeated recursively until all the necessary classes are identified and collected.
For example, suppose that ClassA depends on ClassB and ClassC, and ClassB depends on ClassD. The declaration part of ClassA is in the file ClassA.h, and the implementation part is in ClassA.cc and etc.cc. このようなソースコードの情報は例えば以下のように記述される. (C++ の場合)
ClassA.o: ClassA.cc ClassA.declarations etc.o: etc.cc ClassA.declarations ClassA.declarations: declaration(in ClassA.make) ClassB.declarations ClassC.declarations ClassB.declarations: declaration(in ClassB.make) ClassD.declaration ClassC.declarations: declaration(in ClassC.make)
Then the following Makefile is created automatically from these.
HEADERS=ClassA.h ClassB.h ClassD.h ClassC.h all: ClassA.o etc.o ClassA.o: ClassA.cc $(HEADERS) $(CXX) -c ClassA.cc etc.o: etc.cc $(HEADERS) $(CXX) -c etc.cc
あるいは,クラスAを使ったアプリケーション(targer.cc),
main() { ClassA a; a.method(); }
の Makefile は,
OBJS=ClassA.o etc.o libxxx.a ClassB.o ClassC.o ClassD.o all: targetname targetname: $(OBJS) $(CXX) -c target.cc $(OBJS)の様になる.
この機構は現在開発中であり.まだ詳細な検討が必要である.
